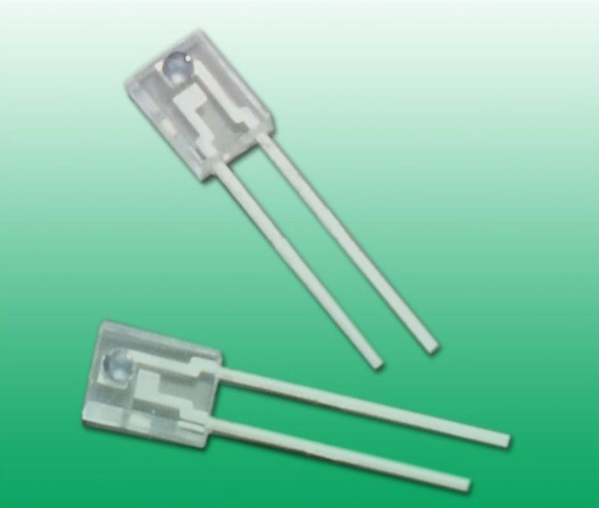

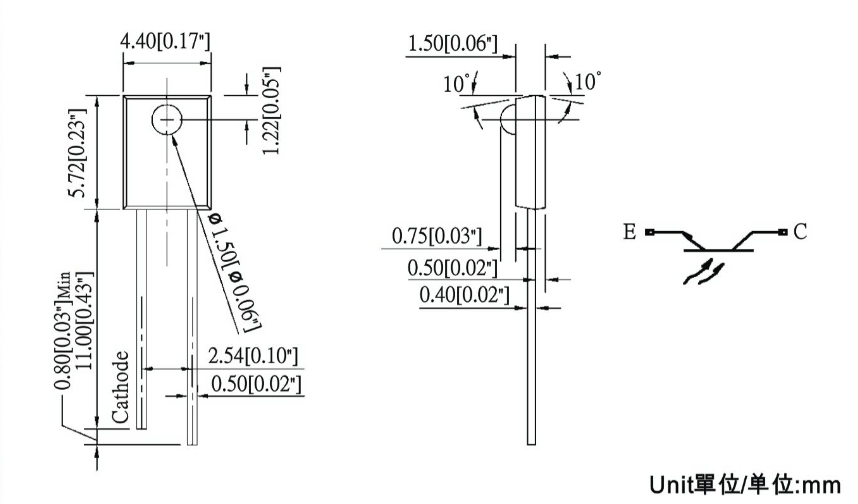

Prev Inquiry Next Specifications swipe to see more GH-5169-302 Series Electro-Optical Characteristics: Code for partsGH-XXXXX Chip Risetime(us) Falltime(us) I(On)(mA) V (BR) CEO V (BR) ECO VCE (SAT)Volt Lens Color Material WaveLength VCE = 5V, D=6mm PD = 0.5mW λᴘ=940nm ILED=20mA IC=100μAIB=0 IE=100μAIB=0 IC=2mAIB=100μA TN4169TK-02E Epoxy 940nm 8 8 2.0 10 3 0.3 Watertransparent All information and data in this website are subject to change without prior notice. Dimension swipe to see more Back
