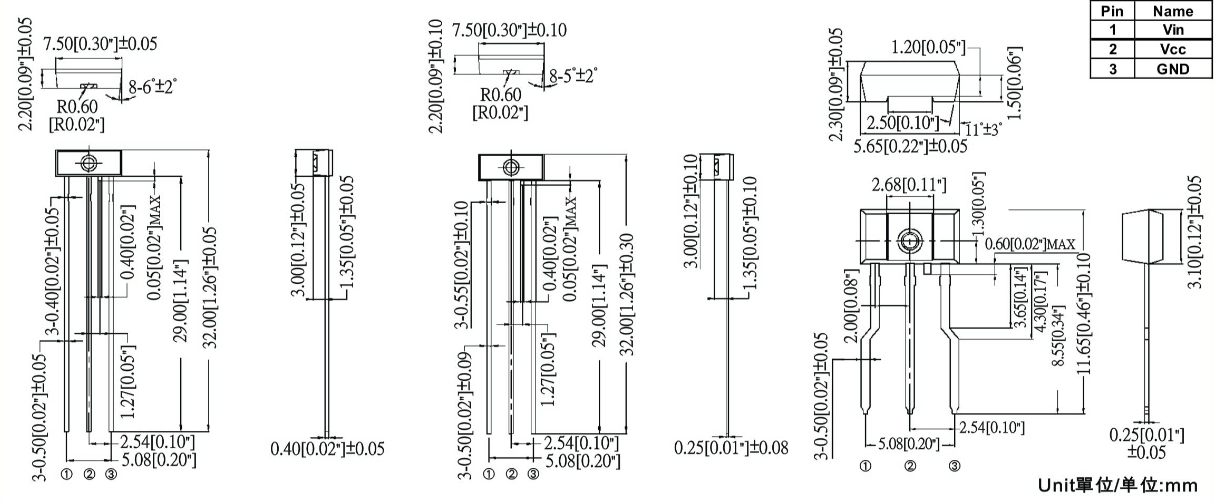

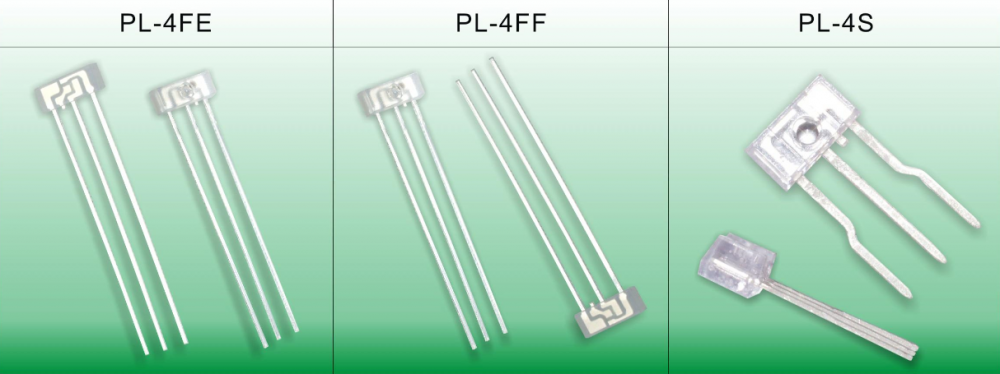

Prev Inquiry Next Specifications swipe to see more GH-POF Series Electro-Optical Characteristics: Code for partsGH-XXXXX Data Rate Supply Voltage VCC DissipationCurrent. Icc Pulse WidthDistortion tw Propagation Delay Time Packagetype Mbps. NRZ V mA, max ns tᴘʟʜ(ns,max) tᴘʜʟ(ns,max) GH-TX3009-E13 DC to 13.2 2.7~5.5 10 ±25 100 100 PL-4FE GH-TX3007-E25 0.1 to 25 2.7~5.5 16 ±12 60 60 PL-4FE GH-TX3007-E50 DC to 50 2.7~5.5 10 ±8 35 35 PL-4FE GH-TX3009-F13 DC to 13.2 2.7~5.5 10 ±25 100 100 PL-4FF GH-TX3007-F25 0.1 to 25 2.7~5.5 16 ±12 60 60 PL-4FF GH-TX3007-F50 DC to 50 2.7~5.5 10 ±8 35 35 PL-4FF GH-TX3009-A13 DC to 13.2 2.7~5.5 10 ±25 100 100 PL-4S GH-TX3007-A25 0.1 to 25 2.7~5.5 16 ±12 60 60 PL-4S GH-TX3007-A50 DC to 50 2.7~5.5 10 ±8 35 35 PL-4S All information and data in this website are subject to change without prior notice. Dimension swipe to see more Back
