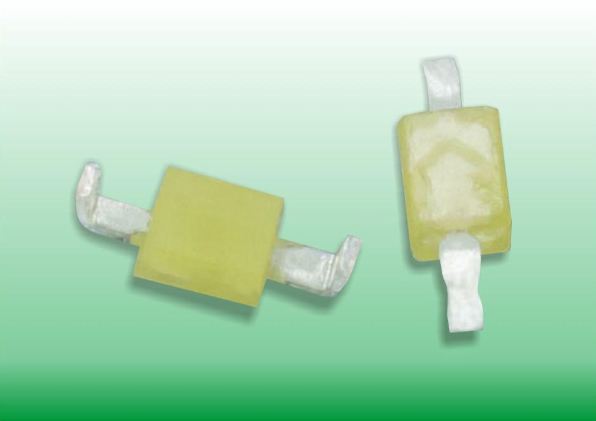

GH-2036-35

swipe to see more

GH-2036-35 Series Electro-Optical Characteristics:

Code for parts GH-XXXXX	Lighting Color	Material	VF（V）		λ（nm）			lv（m cd）		Viewing angle at 50% lv	Lens color
			Typ	Max	λᴅ	λᴘ	△λ	Min	Typ
RV0936TP-35J		AlGalnP	2.0	2.5	630	640	20	63	90	150	Water transparent
OW1236TS-35E		AlGalnP	2.0	2.5	620	630	20	163	200	150	Water transparent
YU0936TP-35J		AlGalnP	2.0	2.5	590	595	16	110	145	150	Water transparent
GB0936TP-35J		AlGalnP	2.0	2.5	570	573	17	20	35	150	Water transparent
G5A236TP-35H		lnGaN	3.1	3.6	520	515	35	125	190	150	Water transparent
BSA236TP-353		lnGaN	3.1	3.7	470	465	25	40	70	150	Water transparent
WBA236TP-353		lnGaN	3.1	3.6	x=0.25~0.31 Y=0.24~0.33			125	240	150	Yellow
