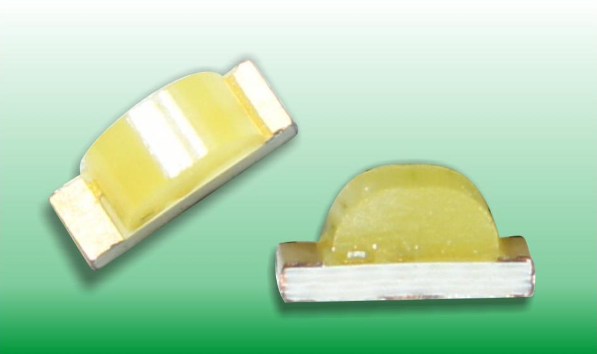

GH-Q110

swipe to see more

GH-Q110 Series Electro-Optical Characteristics:

Code for parts GH-XXXXX	Lighting Color	Material	VF（V）		λ（nm）			lv（m cd）		Viewing angle at 50% lv	Lens color
			Typ	Max	λᴅ	λᴘ	△λ	Min	Typ
RVQ110TS-DPJ		AlGalnP	2.0	2.5	630	640	18	50	85	150	Water transparent
OVQ110TS-DPJ		AlGalnP	2.0	2.5	620	630	18	80	150	150	Water transparent
YUQ110TS-DPJ		AlGalnP	2.0	2.5	590	595	17	80	170	150	Water transparent
GBQ110TS-DPJ		AlGalnP	2.0	2.5	570	572	16	25	40	150	Water transparent
GMQ110TS-HPI		lnGaN	3.3	3.7	525	520	35	320	430	150	Water transparent
BSQ110TS-2P3		lnGaN	3.1	3.7	465	460	25	40	65	150	Water transparent
WBQ110TS-2P3		lnGaN	3.1	3.7	x=0.22~0.38 Y=0.22~0.36			125	255	150	Yellow

All information and data in this website are subject to change without prior notice.
