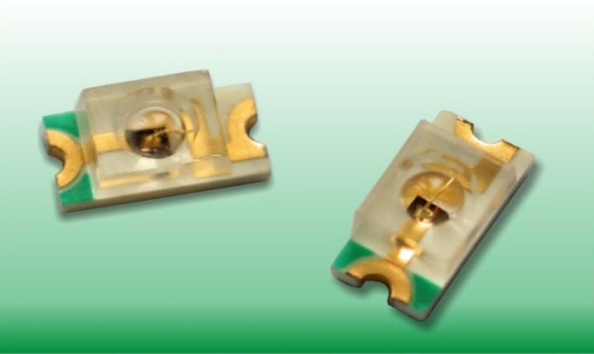

GH-S106

swipe to see more

GH-S106 Series Electro-Optical Characteristics:

Code for parts GH-XXXXX	Lighting Color	Material	VF（V）		λ（nm）			lv（m cd）		Viewing angle at 50% lv	Lens color
			Typ	Max	λᴅ	λᴘ	△λ	Min	Typ
RVS106TS-DPJ		AlGalnP	2.0	2.5	630	640	20	200	450	40	Water transparent
OVS106TS-DPJ		AlGalnP	2.0	2.5	620	630	18	320	600	40	Water transparent
YUS106TS-DPJ		AlGalnP	2.0	2.5	590	595	16	200	420	40	Water transparent
GBS106TS-DPJ		AlGalnP	2.0	2.5	570	572	16	80	150	40	Water transparent
G5S106TS-6PD		lnGaN	3.3	3.7	525	520	40	1600	2700	40	Water transparent
BRS106TS-2P3		lnGaN	3.1	3.7	470	465	24	320	500	40	Water transparent
WBS106TS-2P3		lnGaN	3.1	3.7	x=0.22~0.38 Y=0.22~0.36			160	320	165	Yellow

All information and data in this website are subject to change without prior notice.
