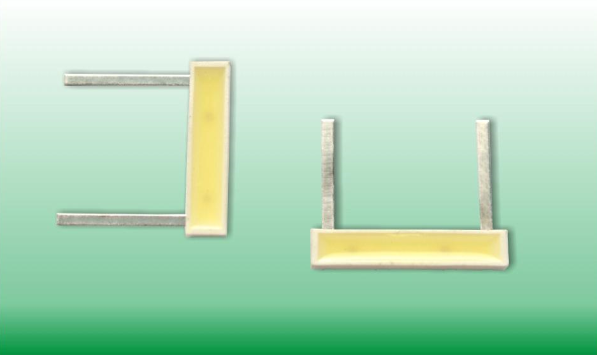

GH-2022A

swipe to see more

GH-2022A Series Electro-Optical Characteristics:

Code for parts GH-XXXXX	Lighting Color	Material	VF（V）		λ（nm）			lv（m cd）		Viewing angle at 50% lv	Lens color
			Typ	Max	λᴅ	λᴘ	△λ	Min	Typ
RUDA22TZ-WPJ		AlGalnP	4.0	4.5	640	650	18	100	170	120	Water transparent
OVDA22TZ-WPJ		AlGalnP	4.0	4.5	620	630	18	200	370	120	Water transparent
YUDA22TZ-WPJ		AlGalnP	4.0	4.5	590	595	17	200	360	120	Water transparent
GBDA22TZ-WPJ		AlGalnP	4.0	4.5	570	572	16	40	60	120	Water transparent
GPHA22TZ-WPl		lnGaN	6.5	7.0	530	525	40	500	700	120	Water transparent
B02A22TZ-WP3		lnGaN	6.5	7.0	470	465	28	200	360	120	Water transparent
W6JA22TZ-WPH		lnGaN	6.5	7.0	x=0.22~0.38 Y=0.22~0.36			1000	1900	120	Yellow
