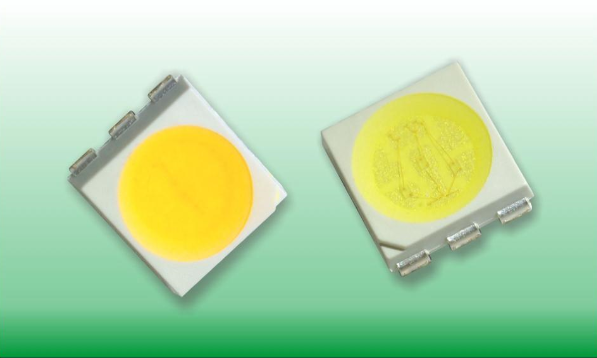

GH-5050

swipe to see more

GH-5050 Series Electro-Optical Characteristics:

Code for parts GH-XXXXX	Lighting Color	Material	VF（V）		CIE(X,Y)			lv（m cd）		Viewing angle at 50% lv	Lens color
			Typ	Max	X	Y	TC	Min	Typ
WG3C75EZ-WS5-27		lnGaN	3.1	3.4	0.4578	0.4101	2700	5000	6200	120	Yellow
WG3C75EZ-WS5-40		lnGaN	3.1	3.4	0.3818	0.3797	4000	5000	6200	120	Yellow
WG3C75EZ-WS5-57		lnGaN	3.1	3.4	0.3287	0.3417	5700	5000	6200	120	Yellow
WF5C75CZ-WSH-65		lnGaN	3.1	3.4	0.3123	0.3282	6500	5000	6000	120	Yellow

All information and data in this website are subject to change without prior notice.
