Specifications

swipe to see more

GH-5050 Series Electro-Optical Characteristics:

Code for parts GH-XXXXX	Lighting Color	Material	V_F（V）		λ（nm）			lv（m cd）		Viewing angle at 50% lv	Lens color
Code for parts GH-XXXXX	Lighting Color	Material	Typ	Max	λᴅ	λᴘ	△λ	Min	Typ	Viewing angle at 50% lv	Lens color
WCFM75TZ-WMH		AlGalnP	2.0	2.5	630	640	18	100	180	120	Water transparent
		lnGaN	3.1	3.7	520	515	35	400	630	120
		lnGaN	3.1	3.7	460	455	22	125	220	120
WG3C75EZ-WC5-27		lnGaN	3.1	3.4	x=0.4578 Y=0.4101			1300	2100	120	Yellow
WG3C75EZ-WC5-40		lnGaN	3.1	3.4	x=0.3818 Y=0.3797			1300	2100	120	Yellow
WG3C75EZ-WC5-57		lnGaN	3.1	3.4	x=0.3287 Y=0.3417			1300	2200	120	Yellow
WF5C75CZ-WCH-65		lnGaN	3.1	3.4	x=0.3123 Y=0.3282			1300	2100	120	Yellow

All information and data in this website are subject to change without prior notice.

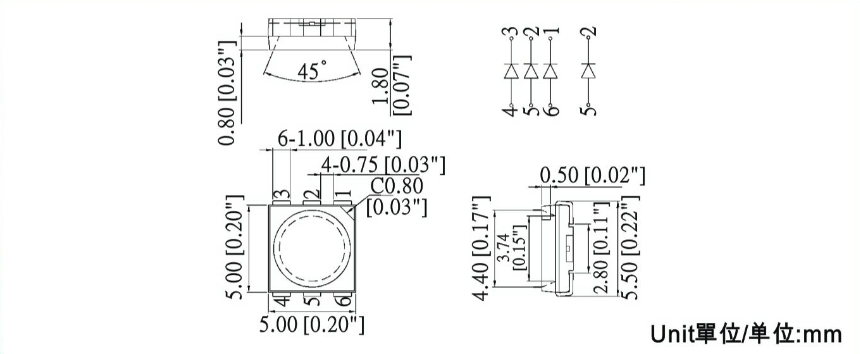

Dimension

swipe to see more
