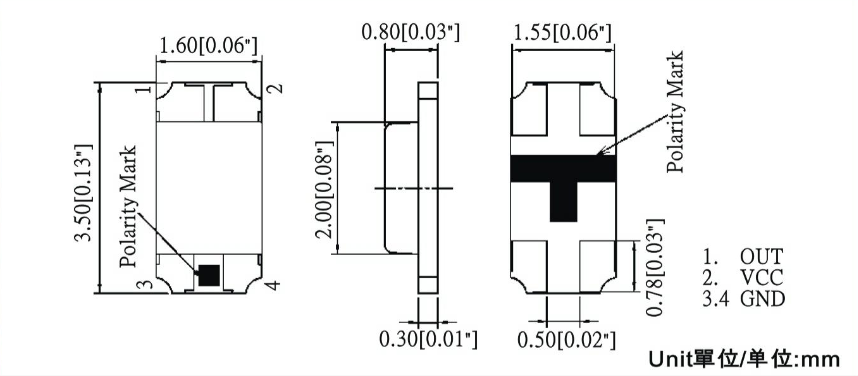

Prev Inquiry Next Specifications swipe to see more GH-D153 Series Electro-Optical Characteristics: Part NumberExample SupplyVoItage Light Current(Vcc=3V) Dark Current LightCurrentRation Saturation OutputVoltage(Vcc=3V; Lux=1000.RL=75KΩ PeakSensitivityWavelength Typ Lux=10 Lux=100 (Vcc=3V; Lux=0) LSD153TS-23E 2.5~5.5 4.2uA 42uA 0.1uA (Max) 1.2 2.2V 590nm All information and data in this website are subject to change without prior notice. Dimension swipe to see more Back
