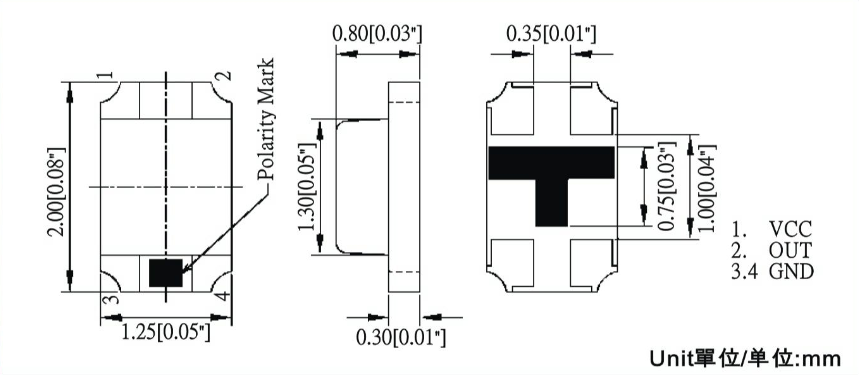

Prev Inquiry Next Specifications swipe to see more GH-D173 Series Electro-Optical Characteristics: Part NumberExample SupplyVoItage Light Current(Vcc=3V) Dark Current LightCurrentRation Saturation OutputVoltage(Vcc=3V; Lux=1000.RL=75KΩ PeakSensitivityWavelength Typ Lux=10 Lux=100 (Vcc=3V; Lux=0) LSD173TS-23E 2.0~5.5 3.5uA 35uA 0.1uA (Max) 1.2 2.35V 590nm All information and data in this website are subject to change without prior notice. Dimension swipe to see more Back
