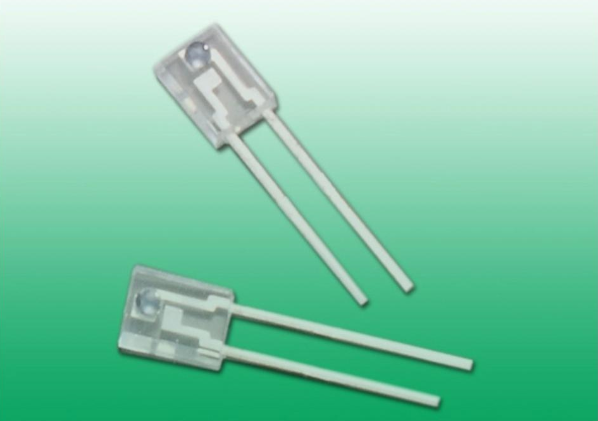

GH-5169-302 Series Electro-Optical Characteristics:

Code for parts GH-XXXXX	Lighting Color	Material	V_F（V）		λ（nm）		le（mW/sr）		Viewing angle at 50% lv	Lens color
Code for parts GH-XXXXX	Lighting Color	Material	Typ	Max	λᴘ	△λ	Min	Typ	Viewing angle at 50% lv	Lens color
ISFZ69TK-02E	Infrared	GaAlAs	1.2	1.7	940	60	2.0	2.4	40	Water transparent
ILFF69TK-02E	Infrared	GaAlAs	1.4	1.9	880	70	1.6	2.4	40	Water transparent
IUJZ69TK-02E	Infrared	GaAlAs	1.4	1.9	850	50	4.0	6.5	40	Water transparent

All information and data in this website are subject to change without prior notice.

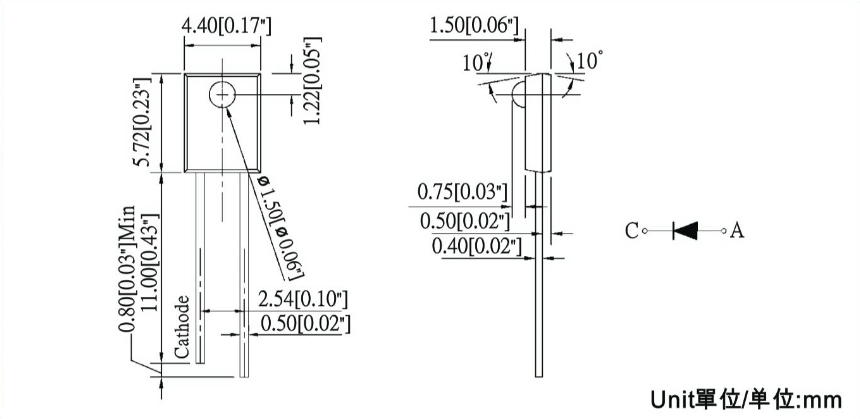

Dimension
