Specifications

swipe to see more

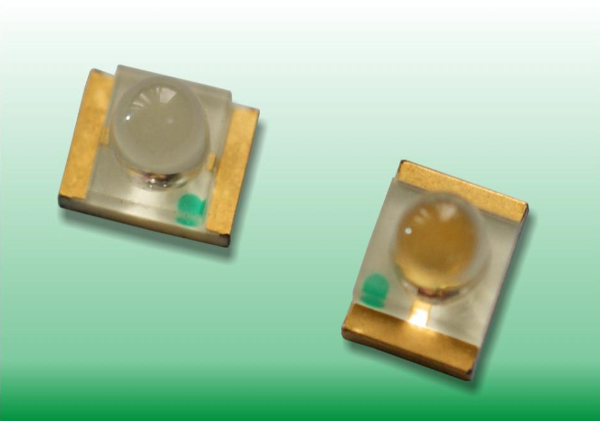

GH-S133 Series Electro-Optical Characteristics:

Code for parts GH-XXXXX	Lighting Color	Material	V_F（V）		λ（nm）		le（mW/sr）		Viewing angle at 50% lv	Lens color
Code for parts GH-XXXXX	Lighting Color	Material	Typ	Max	λᴘ	△λ	Min	Typ	Viewing angle at 50% lv	Lens color
ISS133TR-FZE	Infrared	GaAlAs	1.3	1.8	940	65	1.1	2.0	15	Water transparent
ILS133TR-FZE	Infrared	GaAlAs	1.4	1.9	880	70	1.1	1.8	15	Water transparent
IUS133TR-JZE	Infrared	GaAlAs	1.4	1.8	850	50	1.6	3.0	15	Water transparent

All information and data in this website are subject to change without prior notice.

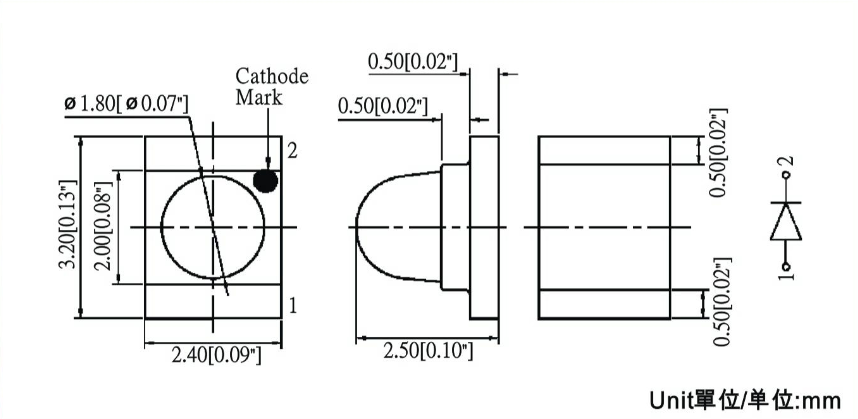

Dimension

swipe to see more
