Specifications

swipe to see more

GH-S150 Series Electro-Optical Characteristics:

Code for parts GH-XXXXX	Lighting Color	Material	V_F（V）		λ（nm）		le（mW/sr）		Viewing angle at 50% lv	Lens color
Code for parts GH-XXXXX	Lighting Color	Material	Typ	Max	λᴘ	△λ	Min	Typ	Viewing angle at 50% lv	Lens color
ISS150TS-FZE	Infrared	GaAlAs	1.2	1.7	940	50	0.4	0.6	140	Water transparent
ILS150TS-FZE	Infrared	GaAlAs	1.4	1.6	880	70	0.35	0.45	140	Water transparent
IHS150TS-HZS	Infrared	AlGaAs	1.4	1.9	850	20	1.1	1.8	140	Water transparent

All information and data in this website are subject to change without prior notice.

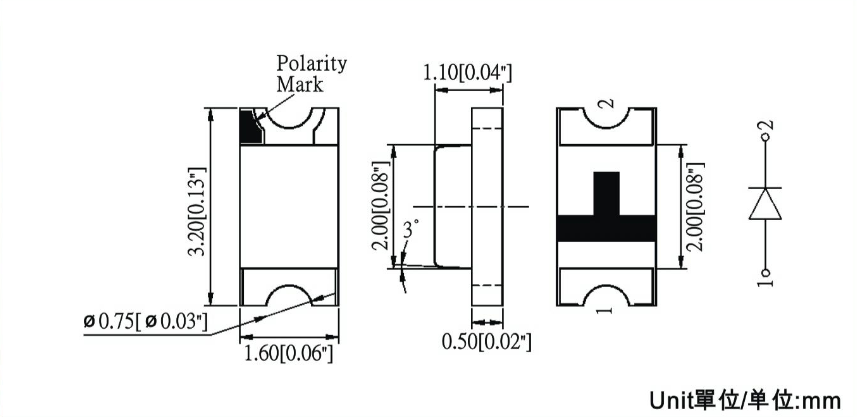

Dimension

swipe to see more
