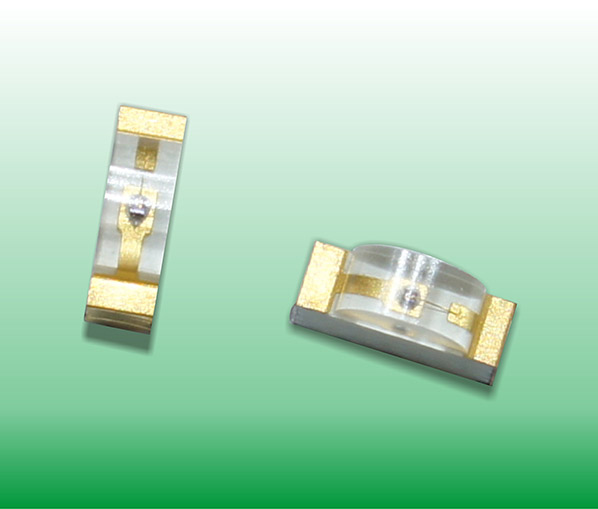

GH-D110 Series Electro-Optical Characteristics:

Code for parts GH-XXXXX	Chip		Rise time (us)	Fall time (us)	I (On) (mA)	V (BR) CEO	V (BR) ECO	VCE (SAT) Volt	Lens Color
Code for parts GH-XXXXX	Material	Wave Length	Rise time (us)	Fall time (us)	VCE = 5V ILED=2mA Ie=0.5mW/sr WLP=940nm	IC=100u A IB=0	IE=100uA IB=0	IC=2mA IB=0	Lens Color
TND110BS-24T	Silicon	940nm	15	15	0.8	40	5	0.2	Black
TND110TS-24T	Silicon	940nm	15	15	0.8	40	5	0.2	Water transparent

All information and data in this website are subject to change without prior notice.

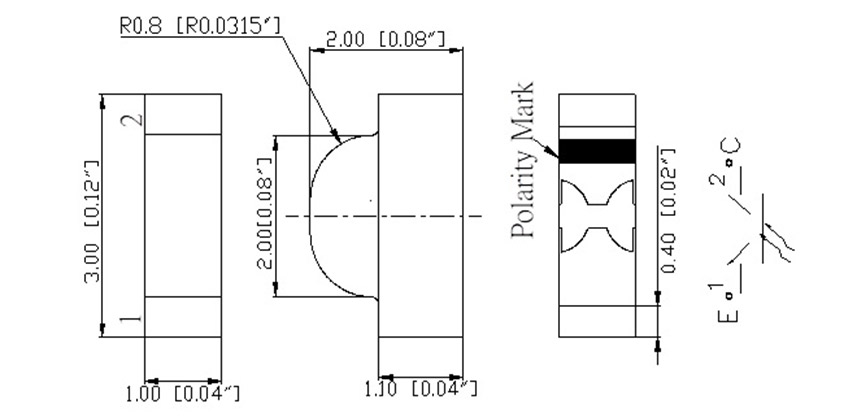

Dimension

swipe to see more
