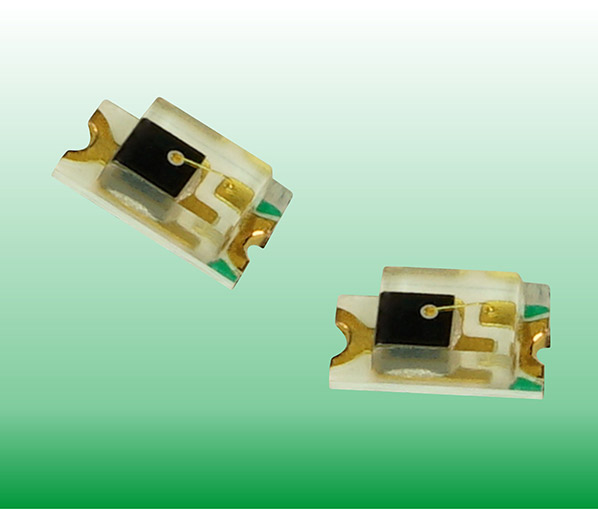

GH-D191 Series Electro-Optical Characteristics:

Code for parts GH-XXXXX	Chip		Rise Time (us)	Fall Time (us)	I (on) (mA)	V (BR) CEO	V (BR) ECO	VCE (SAT) Volt	Lens Color
Code for parts GH-XXXXX	Material	Wave Length	Rise Time (us)	Fall Time (us)	VCE = 5V ILED=2mA Ie=0.5mW/sr WLP=940nm	IC=100u A IB=0	IE=100uA IB=0	IC=2mA IB=0	Lens Color
TND191TS-14Z	Silicon	940nm	15	15	0.4	90	7.1	0.2	Black
TND191TS-24T	Silicon	940nm	15	15	0.4	30	5	0.3	Water transparent

All information and data in this website are subject to change without prior notice.
