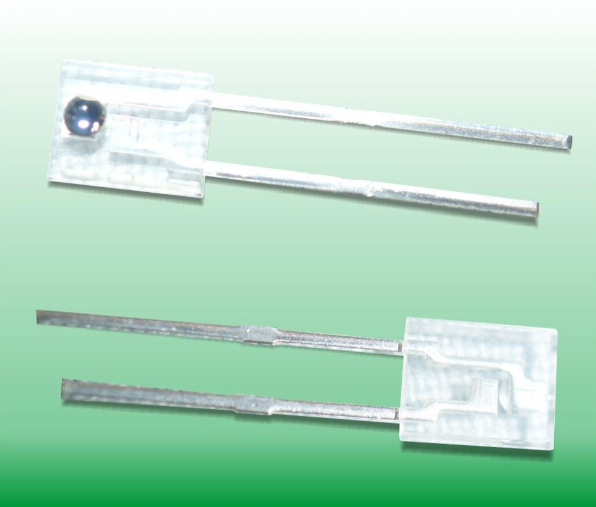

GH-5169-302

Prev Inquiry Next

Specifications

swipe to see more

GH-5169-302 Series Electro-Optical Characteristics:

Part Number
Example		 Reverse
dark
current
(nA)		 Reverse
breakdown
voltage (V)		 Open circuit
voltage
(mV)		 Short circuit
current
(μA)		 Reverse
light
current(μA)
Typ Min Typ Min Typ Min Typ Typ
DLLZ69BK-02E 2 33 170 250 410 5 7 7
DPLZ69TK-02E 2 60 170 220 350 5 8 8

All information and data in this website are subject to change without prior notice.

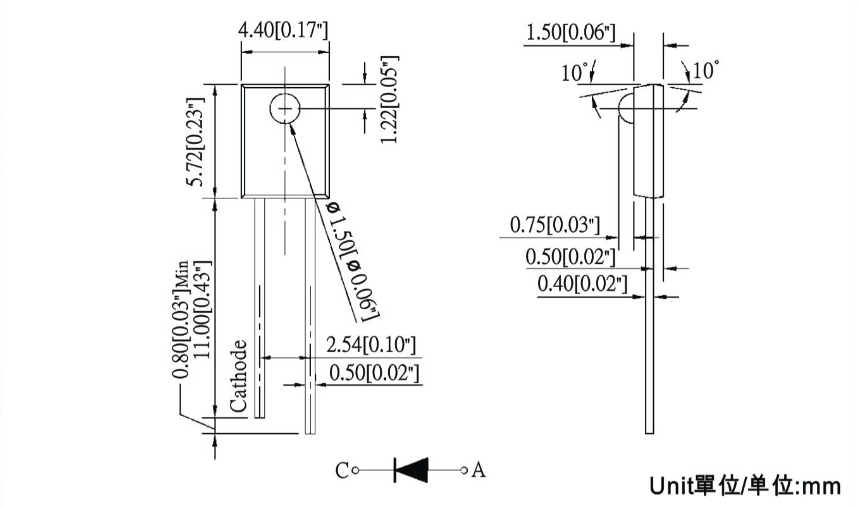

Dimension
