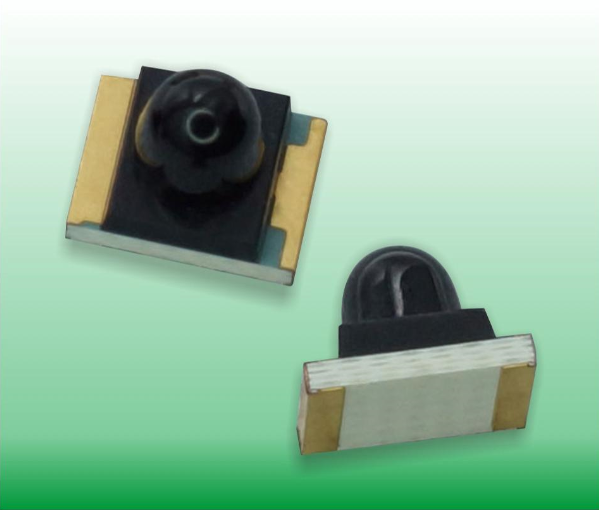

GH-D133

Prev Inquiry Next

Specifications

swipe to see more

GH-D133 Series Electro-Optical Characteristics:

Part Number
Example		 Reverse
dark
current
(nA)		 Reverse
breakdown
voltage (V)		 Open circuit
voltage
(mV)		 Short circuit
current
(μA)		 Reverse
light
current(μA)
Max Min Typ Min Typ Min Typ Typ
DLD133BR-40E 10 33 170 250 410 5 7 7
DRD133BR-40E 10 60 170 220 350 5 7 7

All information and data in this website are subject to change without prior notice.

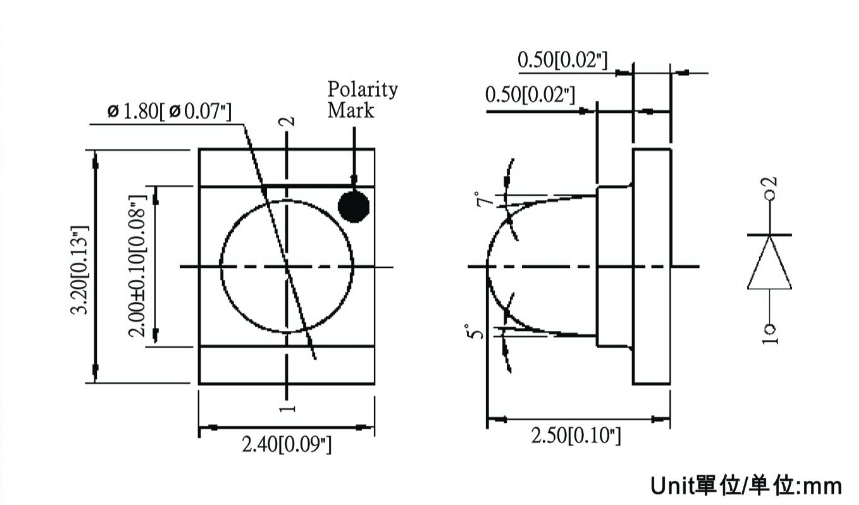

Dimension
