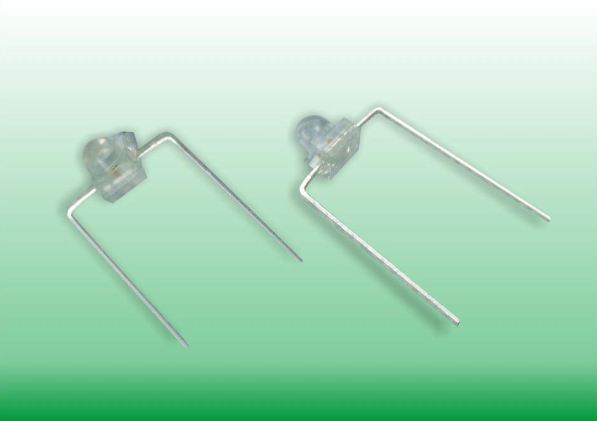

GH-2033-05

swipe to see more

GH-2033-05 Series Electro-Optical Characteristics:

Code for parts GH-XXXXX	Lighting Color	Material	VF（V）		λ（nm）			lv（m cd）		Viewing angle at 50% lv	Lens color
			Typ	Max	λᴅ	λᴘ	△λ	Min	Typ
RV0933TP-05J		AlGalnP	2.0	2.5	630	635	18	630	1195	20	Water transparent
OV0933TP-05J		AlGalnP	2.0	2.5	620	630	17	1250	2400	20	Water transparent
G5A633TP-05D		lnGaN	3.1	3.7	520	515	45	630	7000	20	Water transparent
BSA233TP-053		lnGaN	3.1	3.6	465	460	25	800	1400	20	Water transparent
WBA233TP-053		lnGaN	3.1	3.7	x=0.25~0.31 Y=0.24~0.33			63	115	165	Yellow
MZJS33TD-05J		AlGalnP	2.0	2.5	590	595	17	80	--	20	Water transparent
		AlGalnP	2.0	2.5	570	572	16	25	--	20

All information and data in this website are subject to change without prior notice.
