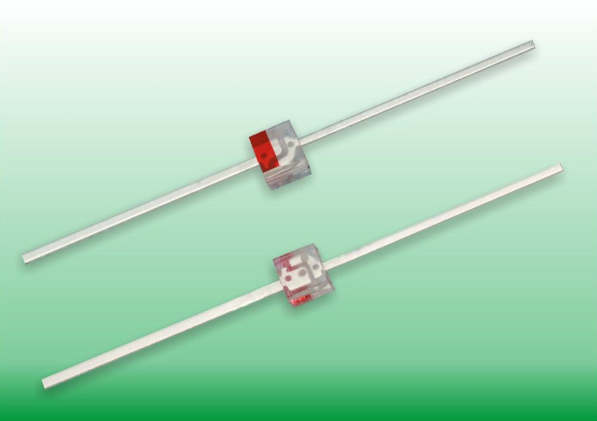

GH-2033-21

swipe to see more

GH-2033-21 Series Electro-Optical Characteristics:

Code for parts GH-XXXXX	Lighting Color	Material	VF（V）		λ（nm）			lv（m cd）		Viewing angle at 50% lv	Lens color
			Typ	Max	λᴅ	λᴘ	△λ	Min	Typ
RV0933TP-21J		AlGalnP	2.0	2.5	630	640	18	50	95	150	Water transparent
OV0933TP-21J		AlGalnP	2.0	2.5	620	630	20	80	120	150	Water transparent
GB0933TP-21J		AlGalnP	2.0	2.5	570	575	20	25	45	150	Water transparent
G5A633TP-21D		lnGaN	3.3	3.6	525	520	35	200	280	150	Water transparent
WBA233TP-213		lnGaN	3.1	3.6	x=0.25~0.31 Y=0.24~0.33			125	250	150	Yellow
MZlW33TC-21E		AlGalnP	2.0	2.5	590	590	17	40	75	150	Water transparent
		lnGaN	3.1	3.6	470	465	25	40	60	150	Water transparent

All information and data in this website are subject to change without prior notice.
