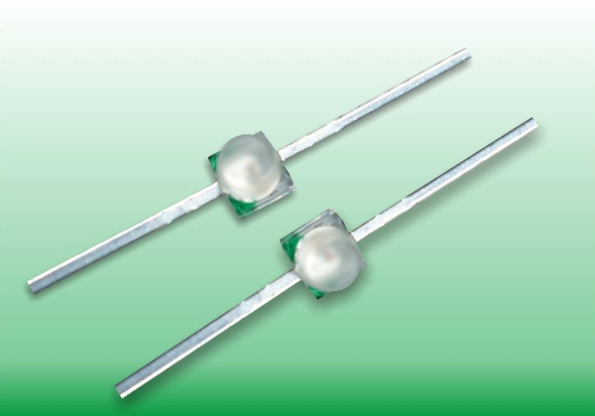

GH-2033-61

swipe to see more

GH-2033-61 Series Electro-Optical Characteristics:

Code for parts GH-XXXXX	Lighting Color	Material	VF（V）		λ（nm）			lv（m cd）		Viewing angle at 50% lv	Lens color
			Typ	Max	λᴅ	λᴘ	△λ	Min	Typ
RS0833TP-61G		AlGalnP	2.0	2.5	630	645	18	50	75	70	Water transparent
OL0833TP-61T		AlGalnP	2.0	2.5	625	635	20	80	120	70	Water transparent
YU0933TP-61J		AlGalnP	2.0	2.5	585	590	18	80	115	70	Water transparent
GB0833TP-61G		AlGalnP	2.0	2.5	570	573	17	40	60	70	Water transparent
G41233TP-61H		lnGaN	3.1	3.6	525	520	30	200	280	70	Water transparent
BSA233TP-613		lnGaN	3.1	3.6	465	460	25	80	110	70	Water transparent

All information and data in this website are subject to change without prior notice.
