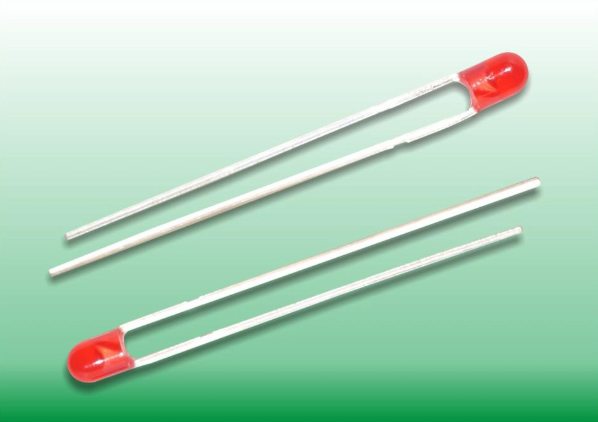

GH-3⌽ Round

swipe to see more

GH-3⌽ Round Series Electro-Optical Characteristics:

Code for parts GH-XXXXX	Lighting Color	Material	VF（V）		λP（nm）			lv（mcd）		Viewing angle at 50% lv	Lens color
			Typ	Max	Min	Typ	Max	Min	Typ
R008P03R-C		AlGalnP	2.0	2.8	--	635	--	500	750	35	Diffuse
O009P03R-C		AlGalnP	2.0	2.8	--	625	--	1000	1700	35	White Diffuse
Y010P03R-C		AlGalnP	2.0	2.8	--	588	--	1000	1500	35	Diffuse
Y011P03R-C		AlGalnP	2.1	2.8	--	585	--	450	740	35	Diffuse
W012P03R-C		lnGaN	3.5	4.0	--	470/579	--	1800	3000	25	Water transparent
W013P03R-C		lnGaN	3.5	4.5	--	470/585	--	2900	42000	20	Water transparent

All information and data in this website are subject to change without prior notice.
