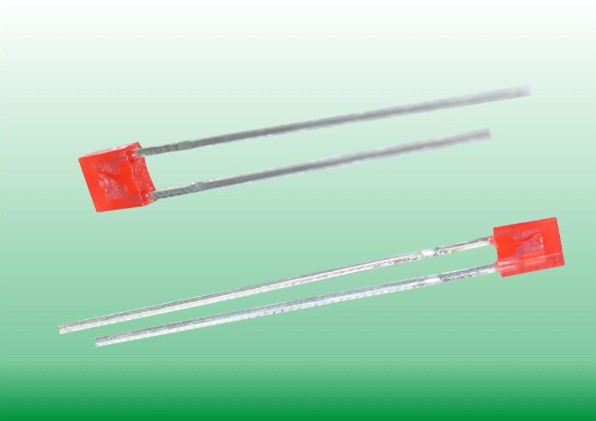

GH-3⌽ Square

swipe to see more

GH-3⌽ Square Series Electro-Optical Characteristics:

Code for parts GH-XXXXX	Lighting Color	Material	VF（V）		λP（nm）			lv（m cd）		Viewing angle at 50% lv	Lens color
			Typ	Max	Min	Typ	Max	Min	Typ
R016P03R-C		AlGalnP	1.8	2.6	--	660	--	220	270	50	Diffuse
A018P03R-C		AlGalnP	2.0	2.8	--	605	--	800	1300	50	Water transparent
Y019P03R-C		AlGalnP	2.1	2.8	--	583	--	350	500	50	Water transparent
G020P03R-C		AlGalnP	2.2	2.8	--	569	--	780	1700	50	Diffuse
G015P03R-C		lnGaN	3.6	4.5	--	515	--	65	140	50	Water transparent
B014P03R-C		lnGaN	3.5	4.5	--	473	--	800	1300	50	Water transparent
W017P03R-C		lnGaN	3.5	4.5	--	470/585	--	800	1350	50	Water transparent

All information and data in this website are subject to change without prior notice.
