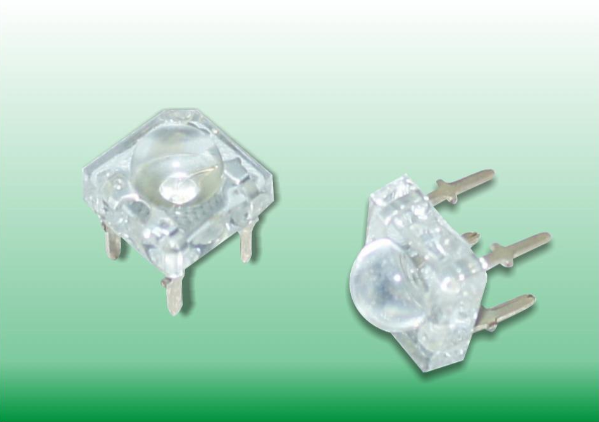

GH-5⌽ Eagle-eye

swipe to see more

GH-5⌽ Eagle-eye Series Electro-Optical Characteristics:

Code for parts GH-XXXXX	Lighting Color	Material	VF（V）		λP（nm）			lv（m cd）		Viewing angle at 50% lv	Lens color
			Typ	Max	Min	Typ	Max	Min	Typ
O885PL204-K		AlGalnP	2.25	2.7	620	--	630	1630	3362	90	Water transparent
Y868PC2AG-K		AlGalnP	2.45	2.6	585	--	597	2760	6000	100	Water transparent
G476PC204-K		lnGaN	3.3	4.0	519	--	537	1700	3600	80	Water transparent
B868PC2AG-K		lnGaN	3.2	4.0	462.5	--	472.5	440	850	40	Water transparent
W855PL204-K		lnGaN	3.2	4.0	x=0.379 Y=0.362			2760	7000	70	Water transparent

All information and data in this website are subject to change without prior notice.
