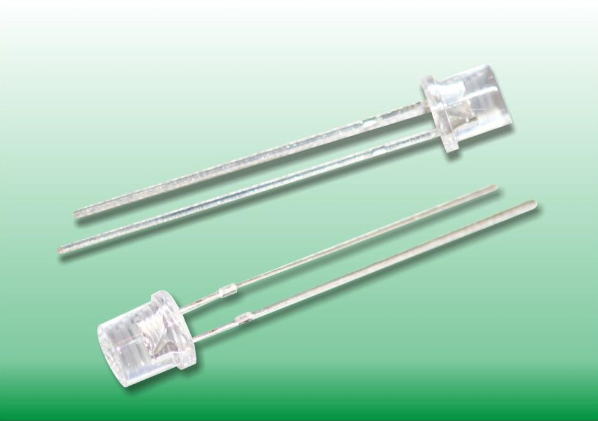

GH-5⌽ Smooth Straw

swipe to see more

GH-5⌽ Smooth Straw Series Electro-Optical Characteristics:

Code for parts GH-XXXXX	Lighting Color	Material	VF（V）		λp（nm）			lv（m cd）		Viewing angle at 50% lv	Lens color
			Typ	Max	Min	Typ	Max	Min	Typ
R021P03R-C		AlGalnP	1.8	2.6	--	660	--	630	880	50	White Diffuse
A023P03R-C		AlGalnP	2.0	2.8	--	605	--	90	130	50	Diffuse
Y024P03R-C		AlGalnP	2.1	2.8	--	585	--	580	980	50	Water transparent
G022P03R-C		AlGalnP	2.0	2.8	--	573	--	450	700	50	Water transparent
G025P03R-C		lnGaN	3.5	4.0	--	515	--	1000	1950	50	White Diffuse
B026P03R-C		lnGaN	3.5	4.0	--	473	--	1000	1500	50	Water transparent
W027P03R-C		lnGaN	3.5	4.5	--	470/585	--	1300	1800	5025	Water transparent
