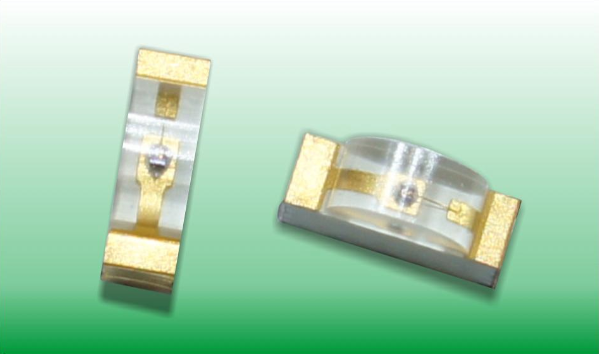

GH-D110

swipe to see more

GH-D110 Series Electro-Optical Characteristics:

Code for parts GH-XXXXX	Lighting Color	Material	VF（V）		λ（nm）			lv（m cd）		Viewing angle at 50% lv	Lens color
			Typ	Max	λᴅ	λᴘ	△λ	Min	Typ
RVD110TS-DPJ		AlGalnP	2.0	2.5	630	640	18	50	85	150	Water transparent
OVD110TS-DPJ		AlGalnP	2.0	2.5	620	630	18	80	140	150	Water transparent
YUD110TS-DPJ		AlGalnP	2.0	2.5	590	595	17	80	170	150	Water transparent
GBD110TS-DPJ		AlGalnP	2.0	2.5	570	572	16	25	40	150	Water transparent
GMD110TS-HPI		lnGaN	3.3	3.7	525	520	35	320	420	150	Water transparent
BPD110TS-HP3		lnGaN	3.1	3.7	470	465	28	63	100	150	Water transparent

All information and data in this website are subject to change without prior notice.
