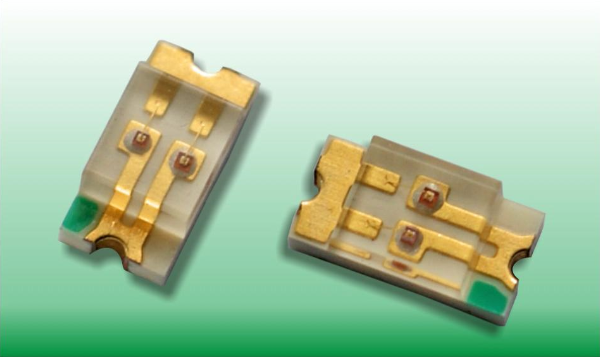

GH-S152

swipe to see more

GH-S152 Series Electro-Optical Characteristics:

Code for parts GH-XXXXX	Lighting Color	Material	VF（V）		λ（nm）			lv（m cd）		Viewing angle at 50% lv	Lens color
			Typ	Max	λᴅ	λᴘ	△λ	Min	Typ
MPS152TS-F1E		AlGaAs	2.0	2.5	643	660	20	5	10	140	Water transparent
		GaP	2.0	2.5	570	568	30	6	12	140
MPS152WS-AVE		AlGaAs	2.0	2.5	643	660	25	5	10	140	White Diffused
		GaAsP	2.0	2.5	590	585	37	6	10	140
MPS152TS-BHH		lnGaN	3.3	3.7	530	525	25	125	220	140	Water transparent
		lnGaN	3.1	3.7	465	460	40	50	80	140

All information and data in this website are subject to change without prior notice.
