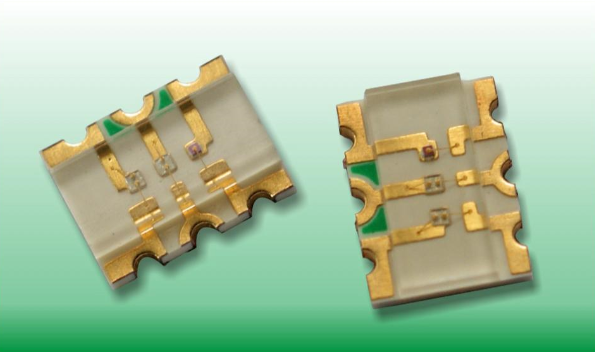

GH-S158

swipe to see more

GH-S158 Series Electro-Optical Characteristics:

Code for parts GH-XXXXX	Lighting Color	Material	VF（V）		λ（nm）			lv（m cd）		Viewing angle at 50% lv	Lens color
			Typ	Max	λᴅ	λᴘ	△λ	Min	Typ
WPS158TS-GUT		AlGalnP	2.0	2.5	630	640	18	50	110	140	Water transparent
		AlGalnP	2.0	2.5	605	610	20	80	160	140
		lnGaN	3.2	3.7	470	465	28	50	90	140
WPS158TS-GXE		AlGalnP	2.0	2.5	635	650	25	40	70	140	Water transparent
		lnGaN	3.3	3.7	520	515	40	250	400	140
		lnGaN	3.1	3.7	470	465	40	50	90	140

All information and data in this website are subject to change without prior notice.
