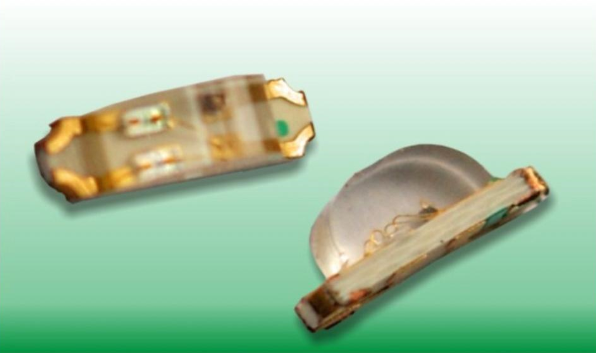

GH-6110

swipe to see more

GH-6110 Series Electro-Optical Characteristics:

Code for parts GH-XXXXX	Lighting Color	Material	VF（V）		λ（nm）			lv（m cd）		Viewing angle at 50% lv	Lens color
			Typ	Max	λᴅ	λᴘ	△λ	Min	Typ
MC6110TS-JIE		GaAsP	2.0	2.5	620	630	40	5	9	150	Water transparent
		GaP	2.0	2.5	570	565	30	8	15	150
MC6110TS-JKJ		AlGalnP	2.0	2.5	630	640	18	50	95	150	Water transparent
		lnGaN	3.2	3.7	520	515	35	160	260	150
ML6110TS-JBJ		AlGalnP	2.0	2.5	640	655	19	50	85	150	Water transparent
		AlGalnP	2.0	2.5	590	595	17	100	170	150

All information and data in this website are subject to change without prior notice.
