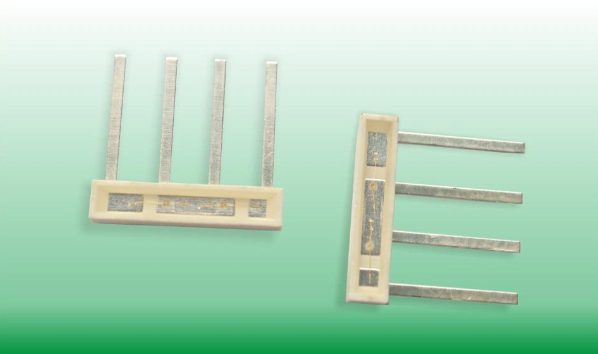

GH-2022C

swipe to see more

GH-2022C Series Electro-Optical Characteristics:

Code for parts GH-XXXXX	Lighting Color	Material	VF（V）		λ（nm）			lv（m cd）		Viewing angle at 50% lv	Lens color
			Typ	Max	λᴅ	λᴘ	△λ	Min	Typ
RQDC22TZ-WPE		AlGalnP	2.0	2.5	630	645	20	100	180	120	Water transparent
OVDC22TZ-WPJ		AlGalnP	2.0	2.5	620	630	18	125	210	120	Water transparent
YUDC22TZ-WPJ		AlGalnP	2.0	2.5	590	595	17	125	240	120	Water transparent
GBDC22TZ-WPJ		AlGalnP	2.0	2.5	570	572	17	30	60	120	Water transparent
G56C22TZ-WPD		lnGaN	3.3	3.7	525	520	35	400	650	120	Water transparent
BQ2C22TZ-WPH		lnGaN	3.1	3.7	470	465	25	100	150	120	Water transparent
W6JC22TZ-WPH		lnGaN	3.1	3.7	x=0.22~0.38 Y=0.22~0.36			400	660	120	Yellow

All information and data in this website are subject to change without prior notice.
