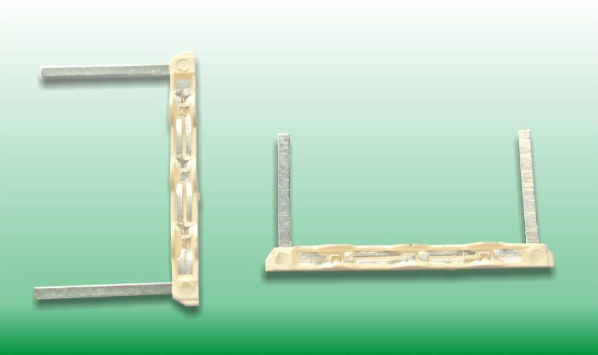

GH-2023A

swipe to see more

GH-2023A Series Electro-Optical Characteristics:

Code for parts GH-XXXXX	Lighting Color	Material	VF（V）		λ（nm）			lv（m cd）		Viewing angle at 50% lv	Lens color
			Typ	Max	λᴅ	λᴘ	△λ	Min	Typ
RSCA23TZ-WPE		AlGaAs	3.5	4.0	640	660	25	25	36	120	Water transparent
OVDA23TZ-WPJ		AlGalnP	4.0	4.5	620	630	20	200	370	120	Water transparent
YUDA23TZ-WPJ		AlGalnP	4.0	4.5	590	595	17	200	360	120	Water transparent
GBDA23TZ-WPF		AlGalnP	4.0	4.5	570	572	16	100	155	120	Water transparent
G5HA23TZ-WPH		lnGaN	6.5	7.0	525	520	30	400	570	120	Water transparent
B6HA23TZ-WPH		lnGaN	6.5	7.0	460	455	23	125	230	120	Water transparent
WB2A23YZ-WP3		lnGaN	6.0	6.5	x=0.22~0.38 Y=0.22~0.36			80	170	120	Yellow

All information and data in this website are subject to change without prior notice.
