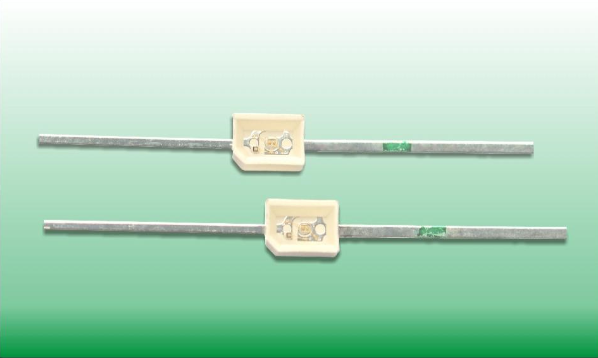

GH-2025

swipe to see more

GH-2025 Series Electro-Optical Characteristics:

Code for parts GH-XXXXX	Lighting Color	Material	VF（V）		λ（nm）			lv（m cd）		Viewing angle at 50% lv	Lens color
			Typ	Max	λᴅ	λᴘ	△λ	Min	Typ
MAKK25TZ-WAJ		AlGalnP	2.0	2.5	640	650	20	50	85	120	Water transparent
		lnGaN	3.1	3.6	525	520	35	500	850	120	Water transparent
YIHA25TZ-WPT		AlGalnP	2.0	2.5	590	595	19	200	300	120	Water transparent
GBDA25TZ-WPJ		AlGalnP	2.0	2.5	570	572	17	40	70	120	Water transparent
GMHA25TZ-WPI		lnGaN	3.1	3.6	525	520	35	500	850	120	Water transparent
BTHA25TZ-WPH		lnGaN	3.1	3.6	465	460	25	100	160	120	Water transparent
W6HA25TZ-WP3		lnGaN	3.1	3.6	x=0.22~0.38 Y=0.22~0.36			500	800	120	Yellow
