Specifications

swipe to see more

GH-2024 Series Electro-Optical Characteristics:

Code for parts GH-XXXXX	Lighting Color	Material	V_F（V）		λ（nm）			lv（m cd）		Viewing angle at 50% lv	Lens color
Code for parts GH-XXXXX	Lighting Color	Material	Typ	Max	λᴅ	λᴘ	△λ	Min	Typ	Viewing angle at 50% lv	Lens color
RQDA24TZ-WPE		AlGalnP	2.0	2.5	630	640	20	125	160	120	Water transparent
OVDA24TZ-WPE		AlGalnP	2.0	2.5	620	630	20	125	210	120	Water transparent
YUDA24TZ-WPE		AlGalnP	2.0	2.5	590	595	20	125	220	120	Water transparent
GBDA24TZ-WPF		AlGalnP	2.0	2.5	570	572	18	63	135	120	Water transparent
G5HA24TZ-WPH		lnGaN	3.1	3.6	520	515	32	400	600	120	Water transparent
BPHA24TZ-WPH		lnGaN	3.1	3.6	470	465	25	160	250	120	Water transparent
WD5A24RZ-WPC		lnGaN	3.1	3.6	x=0.22~0.38 Y=0.22~0.36			500	900	120	Yellow

All information and data in this website are subject to change without prior notice.

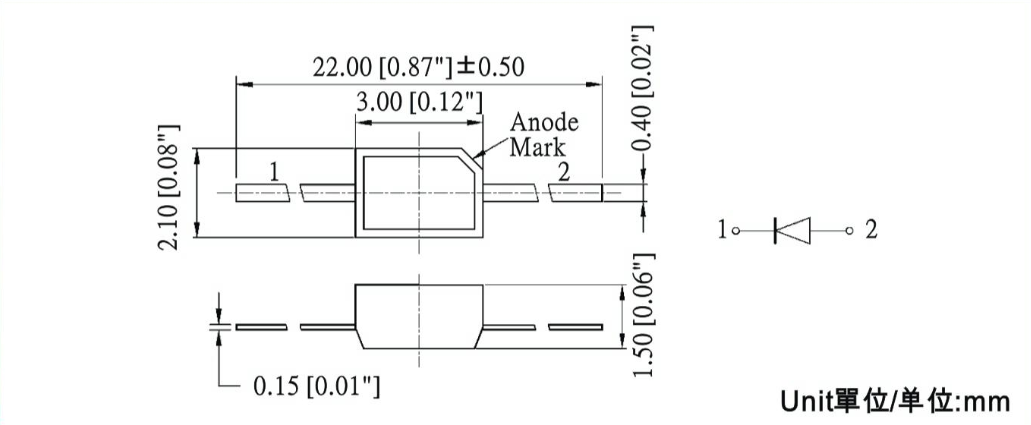

Dimension
