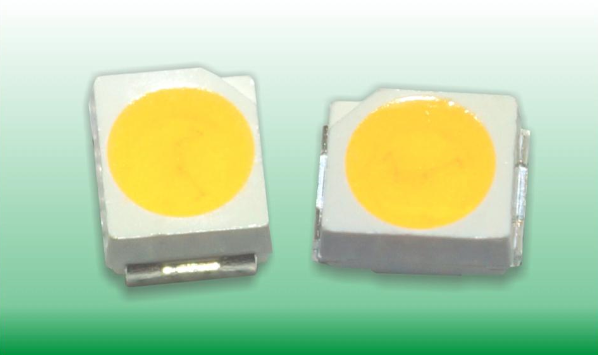

GH-3528

swipe to see more

GH-3528 Series Electro-Optical Characteristics:

Code for parts GH-XXXXX	Lighting Color	Material	VF（V）		CIE（X,Y）			lv（m cd）		LM（lm）	Viewing angle at 50% lv	Lens color
			Typ	Max	X	Y	TC	Min	Typ	Typ
WF5A31EZ-WP5-27		lnGaN	2.8	3.4	0.4578	0.4101	2700	1300	2000	7	120	Yellow
WF5A31EZ-WP5-40		lnGaN	2.8	3.4	0.3818	0.3797	4000	1300	2000	7	120	Yellow
WF5A31CZ-WP5-57		lnGaN	2.8	3.4	0.3287	0.3417	5700	1300	1700	7	120	Yellow
WF5A31CZ-WP5-65		lnGaN	2.8	3.4	0.3123	0.3282	6500	1300	1700	7	120	Yellow

All information and data in this website are subject to change without prior notice.
