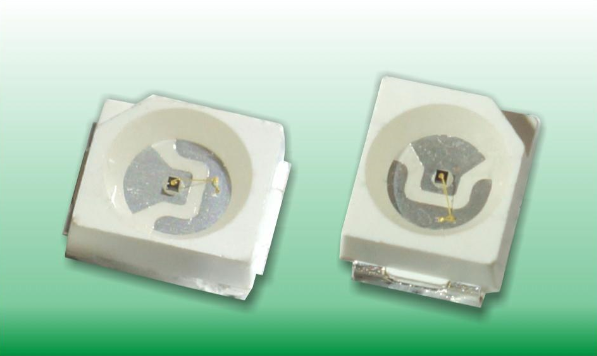

GH-3528

swipe to see more

GH-3528 Series Electro-Optical Characteristics:

Code for parts GH-XXXXX	Lighting Color	Material	VF（V）		λ（nm）			lv（m cd）		Viewing angle at 50% lv	Lens color
			Typ	Max	λᴅ	λᴘ	△λ	Min	Typ
RUDA31TZ-WPJ		AlGalnP	2.0	2.5	640	650	18	50	80	120	Water transparent
OVDA31TZ-WPJ		AlGalnP	2.0	2.5	620	630	18	125	230	120	Water transparent
YUDA31TZ-WPJ		AlGalnP	2.0	2.5	590	595	17	125	210	120	Water transparent
GBDA31TZ-WPJ		AlGalnP	2.0	2.5	570	572	16	40	80	120	Water transparent
BB2A31TZ-WP3		lnGaN	3.1	3.7	460	455	25	63	110	120	Water transparent
VG6A31TZ-WPE		lnGaN	3.1	3.7	410	395	15	1.6	3.5	120	Water transparent
WB2A31TZ-WP3		lnGaN	3.1	3.7	x=0.22~0.38 Y=0.22~0.36			320	550	120	Yellow

All information and data in this website are subject to change without prior notice.
