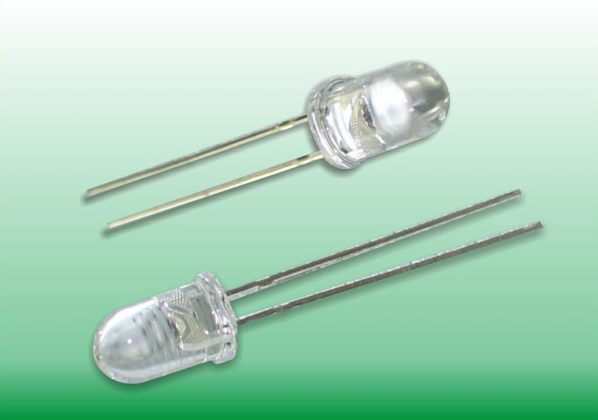

GH-5⌽ Round

swipe to see more

GH-5⌽ Round Series Electro-Optical Characteristics:

Code for parts GH-XXXXX	Lighting Color	Material	VF（V）		λD（nm）			lv（m cd）		Viewing angle at 50% lv	Lens color
			Typ	Max	Min	Typ	Max	Min	Typ
R822P0308-K		AlGalnP	2.0	2.7	630	--	650	13	75	30	Water transparent
O917P0308-K		AlGalnP	2.0	2.7	620	--	630	2200	4500	30	Water transparent
Y916P0308-K		AlGalnP	2.0	2.7	585	--	597	780	1600	30	Water transparent
G889P0308-K		AlGalnP	2.0	2.7	564.5	--	576.5	780	1700	30	Water transparent
G408P0308-K		lnGaN	3.2	3.8	520	--	535	3700	8000	30	Water transparent
B915P0308-K		lnGaN	3.2	3.8	462.5	--	472.5	1000	2000	30	Water transparent
W914P0308-K		lnGaN	3.3	3.8	x=0.282 Y=0.271			4900	10600	30	Water transparent

All information and data in this website are subject to change without prior notice.
