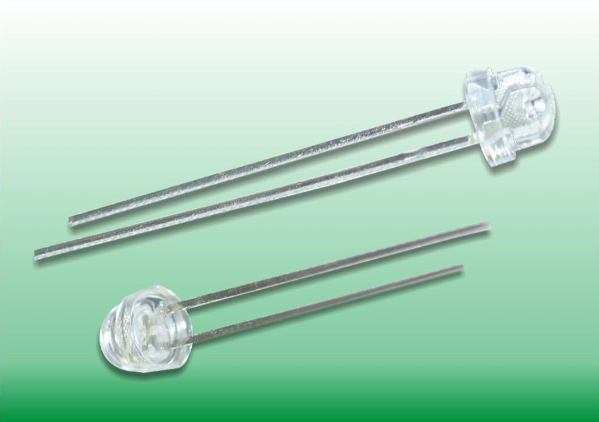

GH-5⌽ Straw Hat

swipe to see more

GH-5⌽ Straw Hat Series Electro-Optical Characteristics:

Code for parts GH-XXXXX	Lighting Color	Material	VF（V）		λᴅ（nm）			lv（m cd）		Viewing angle at 50% lv	Lens color
			Typ	Max	Min	Typ	Max	Min	Typ
O573P0427-K		AlGalnP	1.9	2.4	620	--	630	210	450	120	Water transparent
G570P0427-K		lnGaN	3.2	3.8	520	--	535	1300	2500	75	Water transparent
B569P0427-K		lnGaN	3.2	3.8	461	--	473	120	240	100	Water transparent
V768P0427-K		lnGaN	3.2	3.8	390	--	415	3	5.5	80	Water transparent
W775P0427-K		lnGaN	3.3	3.8	x=0.31 Y=0.32			780	1580	115	Water transparent

All information and data in this website are subject to change without prior notice.
