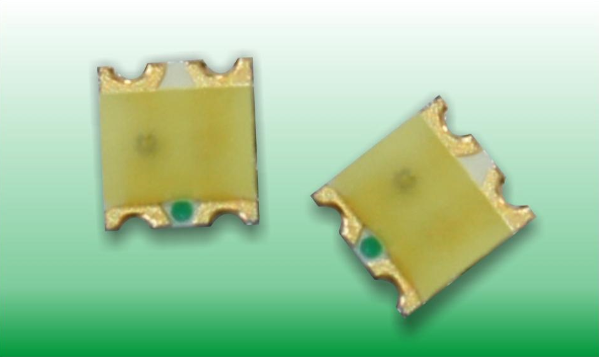

GH-2192

swipe to see more

GH-2192 Series Electro-Optical Characteristics:

Code for parts GH-XXXXX	Lighting Color	Material	VF（V）		λ（nm）			lv（m cd）		Viewing angle at 50% lv	Lens color
			Typ	Max	λᴅ	λᴘ	△λ	Min	Typ
MP2192FS-IZG		AlGalnP	2.0	2.5	590	590	20	11.2	28	140	Yellow
		lnGaN	2.75	3.15	x=0.22~0.38 Y=0.22~0.36			45	135	140
MP2192FS-J7G		AlGalnP	2.0	2.5	605	611	20	11.2	28	140	Yellow
		lnGaN	2.75	3.15	x=0.22~0.38 Y=0.22~0.36			45	135	140

All information and data in this website are subject to change without prior notice.
