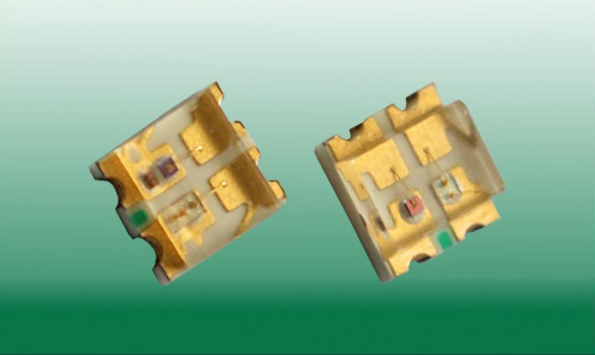

GH-3175

swipe to see more

GH-3175 Series Electro-Optical Characteristics:

Code for parts GH-XXXXX	Lighting Color	Material	VF（V）		λ（nm）			lv（m cd）		Viewing angle at 50% lv	Lens color
			Typ	Max	λᴅ	λᴘ	△λ	Min	Typ
MP3175WS-KAJ		AlGalnP	2.0	2.5	630	640	18	50	100	140	White Diffused
		lnGaN	3.2	3.7	455	450	23	25	35	140
MP3175TS-EWE		AlGalnP	2.0	2.5	630	640	19	32	60	140	Water transparent
		lnGaN	3.1	3.7	530	525	35	160	325	140
WP3175TS-F6E		AlGalnP	2.0	2.5	630	640	20	63	90	140	Water transparent
		AlGalnP	2.0	2.5	570	575	17	20	35	140
		lnGaN	3.1	3.7	470	470	25	40	80	140

All information and data in this website are subject to change without prior notice.
