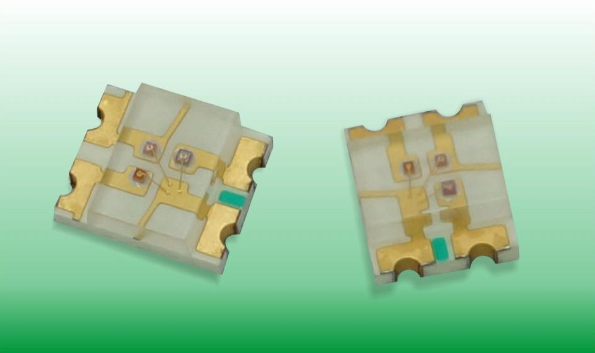

GH-3155

swipe to see more

GH-3155 Series Electro-Optical Characteristics:

Code for parts GH-XXXXX	Lighting Color	Material	VF（V）		λ（nm）			lv（m cd）		Viewing angle at 50% lv	Lens color
			Typ	Max	λᴅ	λᴘ	△λ	Min	Typ
WP3155TS-GCJ		AlGalnP	2.0	2.5	620	630	18	100	180	140	Water transparent
		lnGaN	3.2	3.7	525	520	35	200	340	140
		lnGaN	3.2	3.7	470	465	25	63	120	140
WP3155TS-DXE		GaAsP	1.9	2.5	630	645	43	3.2	8.0	140	Water transparent
		GaAsP	2.0	2.5	585	585	35	3.2	8.0	140
		GaP	2.1	2.5	572	565	30	5.0	13.5	140

All information and data in this website are subject to change without prior notice.
