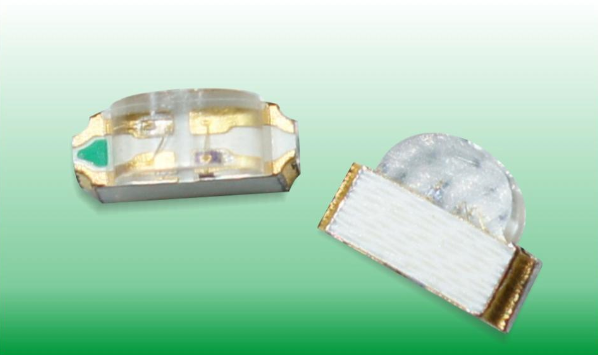

GH-E110

swipe to see more

GH-E110 Series Electro-Optical Characteristics:

Code for parts GH-XXXXX	Lighting Color	Material	VF（V）		λ（nm）			lv（m cd）		Viewing angle at 50% lv	Lens color
			Typ	Max	λᴅ	λᴘ	△λ	Min	Typ
WBE110TS-GIJ		AlGalnP	2.0	2.5	620	630	18	80	150	150	Water transparent
		lnGaN	3.1	3.7	525	520	35	320	540	150
		lnGaN	3.1	3.7	470	465	30	40	95	150
MCE110TS-KFJ		AlGalnP	2.0	2.5	630	640	18	50	140	150	Water transparent
		AlGalnP	2.0	2.5	570	570	16	25	40	150
MDE110TS-I1H		AlGalnP	2.0	2.5	630	640	18	50	85	150	Water transparent
		lnGaN	3.1	3.7	470	465	30	63	105	150

All information and data in this website are subject to change without prior notice.
