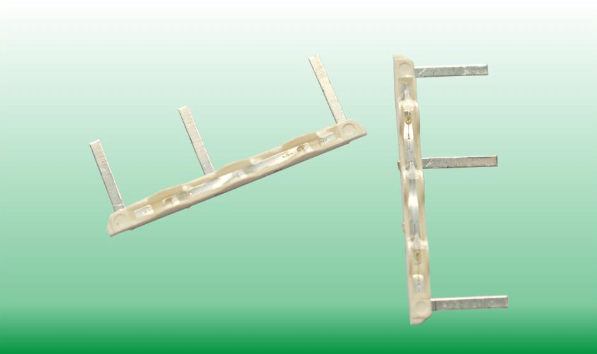

GH-2023B

swipe to see more

GH-2023B Series Electro-Optical Characteristics:

Code for parts GH-XXXXX	Lighting Color	Material	VF（V）		λ（nm）			lv（m cd）		Viewing angle at 50% lv	Lens color
			Typ	Max	λᴅ	λᴘ	△λ	Min	Typ
RSCB23TZ-WPE		AlGaAs	2.0	2.5	640	660	20	25	36	120	Water transparent
OVDB23TZ-WPJ		AlGalnP	2.0	2.5	620	630	18	125	210	120	Water transparent
YUDB23TZ-WPJ		AlGalnP	2.0	2.5	590	595	17	125	240	120	Water transparent
GBDB23TZ-WPJ		AlGalnP	2.0	2.5	570	575	17	40	85	120	Water transparent
G56B23TZ-WPD		lnGaN	3.3	3.7	525	520	35	400	650	120	Water transparent
BS2B23TZ-WPH		lnGaN	3.1	3.7	470	465	25	63	115	120	Water transparent
W6JB23TZ-WPH		lnGaN	3.1	3.7	x=0.22~0.38 Y=0.22~0.36			400	660	120	Yellow

All information and data in this website are subject to change without prior notice.
